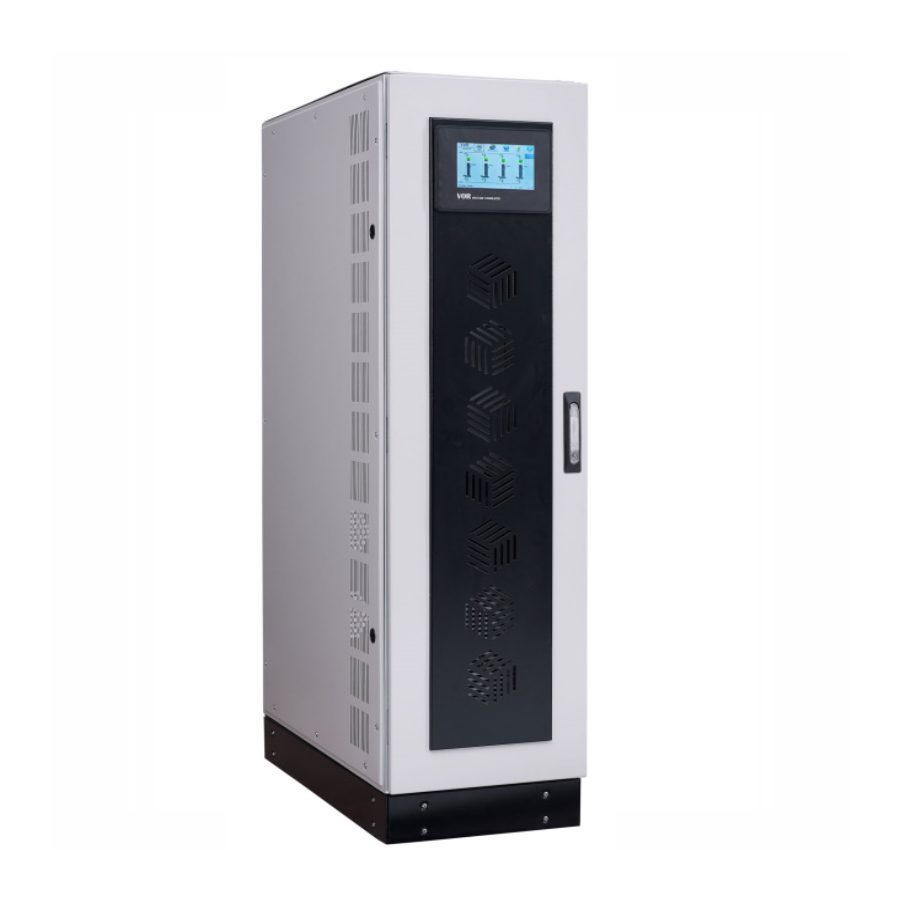

400 кВА — Стабилизатор параллельного напряжения — VoR-3P400
TECHNICAL SPECIFICATIONS
Vor Parallel Voltage Stabilizer Technical Features | |||||
---|---|---|---|---|---|
Power (kVA) | 400 KVA | ||||
Number of Parallel Connection | Up to 16 units can be connected in parallel | ||||
Maximum Power | 10 MegaWatt with standard models (50 MegaWatt with special production devices) | ||||
Input | |||||
Rated Input Voltage | 400VAC 3Phase + Neutral + Ground (Different Voltage Values are Optional.) | ||||
Voltage Tolerance |
| ||||
Frequency | 50Hz +/-5% (Optional 60Hz) | ||||
Output | |||||
Rated Output Voltage | 400VAC 3Phase + Neutral + Ground (Different Voltage Values are Optional.) | ||||
Voltage Tolerance | +/-2% (+/-1% and +/-3% are optional for special applications) | ||||
Frequency | 50 Hz ± 5% | ||||
Overload Capacity | 125% 1 minute, 150% 10 seconds, 151% and above 0.2 seconds | ||||
Response Time | 20 msec | ||||
Correction Time
| 100 msec – 200 msec | ||||
Efficiency | > 97% typical | ||||
Management, Monitoring and Communication Interfaces | |||||
Operator Panel With LCD Display | 4 lines 20 characters LCD display and Mimic Diagram. Input Voltage, Output Voltage, Load Percentage, Frequency, Status Information, Fault Information, Parameter settings | ||||
Touchscreen Operator Panel (optional | 7″ Touchscreen Color Display, Input Voltage, Output Voltage, Load Percentage, Frequency, Number of parallel connections, Status Information, Fault Information, Parameter settings | ||||
Parallel Communication Interface | CAN-BUS communication up to 100 meters with CAT-5 cable | ||||
Remote Management and Monitoring Interface | Browser-based remote management with Ethernet connection. MOD-BUS RTU with RS485 connection | ||||
Protection Functions | |||||
Voltage Protection | Electronic protection for Low Voltage and High Voltage | ||||
Current Protection | Input Circuit Breaker (Output Circuit Breaker optional) | ||||
Overload Protection | 1 minute at 125% overload, 10 seconds at 150% overload, 0.2 seconds over 151% overload, after the power to the load is cut off. | ||||
Over Temperature Protection | Fan cooling works at 50 °C. At 80 °C, the power to the load is cut off | ||||
Surge Arrester | Class-I or Class-II (optional) | ||||
Environmental Conditions
| |||||
Operating temperature | -10 °C ~ +40 °C | ||||
Altitude Working Height | 1.500m | ||||
Humidity | 90% none condensed | ||||
Acoustic Noise
| < 55dB | ||||
Cabinet Specifications | |||||
Type – Protection Class | Free Standing Modular Cabinet, IP21 Indoor type (IP54 and higher protection class, Outdoor Type Cabinets are optional) | ||||
Paint-Color | Epoxy-Polyester Powder Paint – RAL 7035 | ||||
Cooling | Air cooling with thermostat controlled fan. |
OPTIONS
OPTION | CODE | DESCRIPTION |
---|---|---|
Non-standard Operating voltage value | xxxV | VOR series voltage regulators can be produced at any required operating voltage value that must ve stated clearly by the order confirmation. |
Non-standard operating voltage range | XS,M,L,XL | VOR series voltage regulators can be produced at different input voltage range. The required levels must be stated clearly by the order confirmation. Maximum input voltage range: -%60, +%40 |
Non-standard output voltage tolerance | 4T,5T, 4C,5C | Output voltage tolerances of regulators can be +/-1%, +/-2%, -3%, +/-5% |
Adjustable output voltage | ADJ | Output voltage of VOR series regulators can be adjusted by the LCD panel. Maximum adjusting range is +/-15% |
Non-standard frequency | FRQ | VOR series voltage regulators are produced to function with 50Hz network frequency. If 60 Hz is required this must be stated cleary orderconfirmation. |
Output protection MCCB | OCB | Optional MCCB may be added to the regulator output to provide additional protection. |
Manual By-Pass | MBP | Manual By-Pass unit may be added to the output of VOR series voltage regulators. |
Automatic uninterruptible By-Pass | ABP | Automatic Uninterruptible By-Pass unit may be added to the output of VOR series voltage regulators. |
Isolation Transformer | TRF | Isolation Transformer or Voltage Changing Auto-Transformer can be supplied for both input and output of VOR series voltage regulators. Reguired transformer specification must be given by the order |
Special enclosure | K | VOR series voltage regulators can be produced both INDOOR and OUTDOOR in special cabinets having different IPXX protection classes. |
EMC Filter | EMC | Specially designed EMC-Filters can be added optionally to the both input and output of VOR series voltage regulators. Filter specifications must be stated by offer/order. |
Surge Protector | SPD | High-Voltage Protection and Surge Arrester can be added to the both input and output of VOR series voltage regulators. The required protection classes and the specifications (CLASS-I, CLASS-II, SLASS-III) must be given with the order. |
Remote monitoring and management unit | RMU | For remote monitoring and managing of VOR series voltage regulators, Remote Management and Monitoring unit can be added optionally.No any other software is needed for this RMU unit which provides a browser based communication over LAN- connection or internet. |
Dry contacts | C | NO-NC dry contactor sockets can be applied for ON-OFF and Automatic By-Pass modes of the regulators. |
Non-standard Input/Output terminal | T | According to the various customer needs. Input and output terminals can be designed and located specially on the cabinet. The required terminal drawings must be supplied together with the offer/order. |
Special design and accessories | SPM | VOR voltage regulators can be designed specially with respect to direct customer needs and teachnical specifications. All special requirements and detailed teachnical drawings and specifications for accessories must be provided by the customer at the offer/order stage. |
Parallel connection management unit | PCM | Up to 4 svs units can be connected in parallel for special high power aplications. A PCM unit is used for management and syncronization when svs unit are connected in parallel. |
Special operating temperature | SOT | Custom device these can operate in special operating temperatures can be manufactured on demand. |
Wooden Case | WCR | Wooden case and special packaging compatible with international shipment standards |
Product Features
What is VoR Parallel Voltage Stabilizer?
VoR is an Alternative Current (AC) voltage regulation and protection device which provides continuous, safe and stable voltage to sensitive industrial machines and equipments. It adjusts and keeps constant unstable network voltage to the most proper voltage value for industrial facilities.
How does it work?
Each VoR unit works on the principle of injecting voltage to the load supply voltage by the help of transformer connected in series between the network and load. High-speed and sensitive measuring circuits of VoR measure voltage drops and fluctuations. Microprocessor-based management board calculates the voltage value to be increased or decreased and performs the voltage injection with Thyristor switches.
The measuring time of low voltage and high voltage is 20 milliseconds.
Voltage correction time is 100-200 milliseconds.
All operations are done automatically and without any operator assistance.
Eliminate the risk with Parallel Redundant VoR
Parallel Operation Technology
VoR voltage stabilizers have power-up technology by connecting in parallel. For parallel operation, the inputs and outputs of two or more VoR voltage stabilizers are short-circuited and the communication cable between the units is attached. Parallel connected devices operate together as one device and share the load between them. The number of device which can be connected in parallel is 16. VoR voltage stabilizers which have patented parallel operation technology provide uninterrupted, safe and flexible voltage regulation solution operating together and simultaneously.
Multi-master Modular System
VoR Voltage Stabilizers do not need a separate control unit for parallel operation. All VoR Voltage Stabilizers can operate as Master. The patented VoR software protocol enables automatic selection of the master unit. When the master unit is disabled, new master is in less than a second. There is no power interruption during master change. For parallel operation, it is enough to connect the communication cable.
Equal Load Sharing
Parallel connected VoR Voltage Stabilizers share the load current. The imbalance in load sharing is less than 10%. The patented VoR software algorithm ensures that the output voltages are equal in all Stabilizers. Conductivity differences on semiconductor components are eliminated with the “Load Balancing Unit”. With this technology, the total load is shared equally among the VoR Stabilizers and there is no circulation current between the stabilizers.
N+1 Redundancy Solution
VoR Voltage Stabilizers provide the N+1 redundant power solution for uninterrupted operation of critical industrial devices. For this, 1 spare VoR Stabilizer is added to the system. When any unit is shut down due to maintenance or malfunction, the remaining devices continue to operate at full power. VoR Voltage Stabilizer which is maintained can be put into use without any power interruption.
Modular and Flexible Design, Fast and Easy Installation
VoR Voltage Stabilizers provide flexible investment and planning opportunities to Industrial Enterprises, Product Suppliers and Design Engineers.
Industrial Plants, purchase VoR only in capacity that matches their existing power requirement. When needed more power, a new VoR can be added to system. When less power is required, one of the VoR Voltage Stabilizers is turned off and energy can be saved.
International Product Suppliers&Resellers, can deliver all customer requests swiftly from stock by keeping only 4 models of VoR Voltage Stabilizers in stock.
Design Engineers can easily design distribution rooms with small-sized modular VoR Voltage Stabilizers. VoR Voltage Stabilizers offer the best solution for additional power and backup needs.
Changing The Input Voltage Range
Input Voltage Correction range of VoR Voltage Stabilizers may be changed. This transaction is adjusted by changing a wiring on the power transformers. 3 different voltage range can be selected. The adjustable Input Voltage Range specification provides the great advantage for Product Suppliers and Resellers. It is not necessary to wait for customer demands for stock product order. Standard VoR Voltage Stabilizers may be customized in accordance with customer needs.
Full Protection with Fast and Durable Thyristor Technology
In VoR Voltage stabilizers, voltage increasing and voltage decreasing are done using THYRISTOR switches. Voltage regulation transaction is done from AC to AC directly. It doesn’t create harmonic distortion on network or load voltage. VoR Voltage Stabilizers are equipped with protection systems of Low Voltage, High Voltage, Overload and Over Temperature for safe operation of critical industrial devices.
Production in All Industrial Voltages (Optional)
VoR Voltage Stabilizers is produced in all industrial input voltages. 3 Phase + Neutral connection , 208VAC, 220VAC, 380VAC, 400VAC, 415VAC, 480VAC, 600VAC The nominal operating voltage of the VoR Voltage Stabilizers is determined at the order. It cannot be changed later.
Full Power Performance at Low Voltage (Optional)
Standard type VoR voltage Stabilizers are designed to operate at full load at rated input voltage. Input fuse, power transformers and thyristors of standard type VoR Voltage Stabilizers have been selected with capacities suitable for nominal voltage.
Therefore, when the input voltage drops, the output power drops at the same rate. N+1 backup solution should be used for full load operation at low voltage. For special applications, VoR Voltage Stabilizers can be produced to operate at full load at the lowest input voltage. VoR’s input fuse, power transformers and thyristors are selected with capacities suitable for the minimum input voltage for continuous full load performance at the lowest input voltage.
Copper Busbar Set for Parallel Connection (Optional)
Copper busbar sets required for parallel connection of VoR Voltage Stabilizers can be ordered together with the device. Copper busbars in suitable sizes for the ordered VoR model are marked according to color codes and insulated for safe use. Screw and Bolt sets required for connection are also supplied.
Maintenance By-Pass Switch (optional)
A Maintenance By-Pass switch can be added to the VoR voltage stabilizers, which ensures that the loads are transferred to the network in case of maintenance or failure. By-Pass mode is selected from the operator panel before the maintenance bypass operation is performed. During the Maintenance By-Pass operation, the power supplied to the loads is cut for a short time.
p.s: When one of the parallel connected devices is in the by-pass position, all devices turn off their output power. Therefore, for maintenance bypass in parallel system, external by-pass board should be used.
With easily accessible screens; your peace of mind, your job easier…
Operator Panel
VoR Voltage Stabilizers have an ergonomic and user-friendly Operator Panel designed for management and monitoring. All operating parameters of the Voltage Stabilizer can be monitored from this panel and some operating parameters can be adjusted. There is two-step password protection for parameter changing.
Monitorable parameters
Input Voltages, Output Voltages, Common Busbar Voltages, Load Percentages, Operating Frequency, Number of devices connected in parallel, Date-Time, Device Status Information, Fault and Error Codes.
Changeable Parameters
Output Voltage Set Value (limited), Device ID number, Communication Parameters, Date-Time Information.
Remote Monitoring and Management
Ethernet Web Server (optional)
It is designed for remote monitoring via network. The whole system can be monitored and managed by connecting to any of the VoR Voltage Stabilizers with an Ethernet cable. The remote management interface is designed as browser-based. It can be connected from any computer with a web browser. No additional software is required. With remote management interface; all parameters of all VoR Voltage Stabilizers connected in parallel can be monitored and some parameters can be changed. There is two-step password protection for accessing the remote monitoring interface.
MOD-BUS RTU (optional)
It is designed for monitoring and management via Mod-Bus. The whole system can be monitored and managed using the Mod-Bus protocol by connecting with a cable to any of the VoR Voltage Stabilizers. Parameters of all VoR Voltage Stabilizers connected in parallel can be monitored and some parameters can be changed by connecting to any device with Mod-Bus protocol
