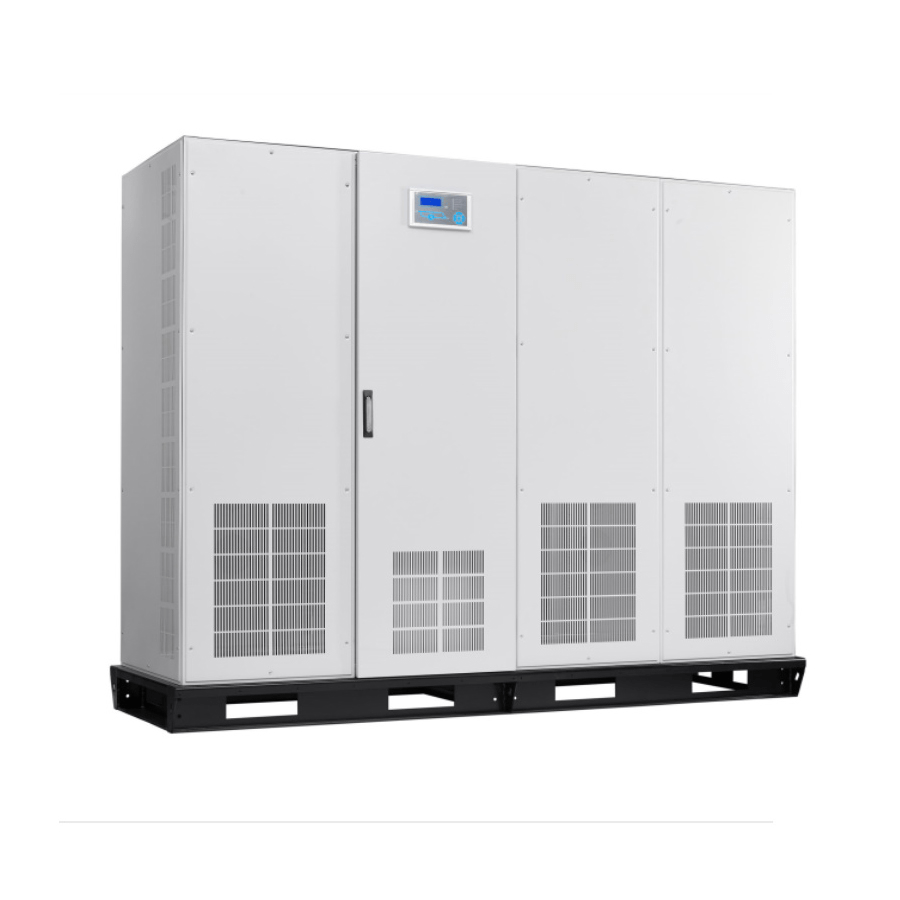

2000 Ква TECHNICAL SPECIFICATIONS of STATIC VOLTAGE STABILIZER SVS SERIES THREE PHASE INPUT – THREE PHASE OUTPUT
Electronic or electromechanical voltage stabilizers which are produced in order to prevent the devices located in houses, working places, factories etc. to be damaged depending on the voltage drops or voltage rises on main supply and to get the maxi¬mum efficiency.Compared to other stabilizer types, regulation speed of the INFORISE Static Voltage Stabilizer is much higher (500 V/second), because it car¬ries out the control operation with micro-processor-controlled cards and correction operation by thy¬ristor; besides it does not have any moving parts. Therefore, it does not need maintenance and its expected life is long.In cases where the device needs to do regulation, it does not cause any power cut, because it does the regulation every time the grid sign pass 0 (zero). Also, sensitive devices could work with complete performance since output signs don’t show any de¬generation.INFORISE Static Voltage Stabilizers are designed and produced in such a manner that can easily feed the non-linear loads and motor-driven devices which has high inrush current. Therefore, working of the devices that draw over instantaneous or peak current is supplied trouble-free.Places where grid voltage is irregular and unreli¬able, it is a high-tech solution for your sensitive devices to work properly. It is produced by semi¬conductors and high-quality material in order to op¬erate with high efficiency at full load under extreme & high voltage charges conditions.
USAGE AREA 2000 Ква
Uninterruptible Power Supplies, TV / Radio transmit¬ter stations, GSM base stations, image and sound production studios, air – conditioners medical de¬vices, hospitals, neon and laser illuminations, press and textile machines, photograph press machines, submerging pumps, ships, electric motors and all electrical devices sensitive to voltage changes.
r
2000 Ква STRUCTURAL SPECIFICATIONS
- Production between power range of 2KVA- 3000KVA, with single phase output and three phase output.
- High voltage regulation speed (500 V / second)
- On / off and manuel by-pass switch for working through grid, in cases where malfunction hapens or when maintenance needs.
- Suitable for three phase unbalanced loads up to 100%
- Electronic protection against over current and short circuit
- Smart control and protection unit through micro¬processor based boards
- User friendly, easy and comprehensive LCD display and mimic diagram (2×16 for single phase devices, 4×16 for three phases devices)
- Real static modular structure with THYRISTOR tech used in power units and SMPS tech used in power supply units.
- New technological design that is suitable for industrial environment, does not effected by dust, moisture and vibration and does not need maintenance.
- Ergonomic carrying handles and rubber foots (only for single phase)
- Omni Wheel (only for three phases)
- Safe usage for all electrical devices.
- Flexible design and software property that can easily orient itself different grid and voltage con¬ditions
- High efficiency, silent operation
- Aesthetic, ergonomic design, minimal size, long life
- Compact structure with high quality material and minimum malfunction hazard
- Special, durable cabinet, powder coated with standard color named RAL-7035
- Through a software support and “Remote Management System”, the ability of monitoring and controlling (Optional)
- Surge arrestor against to spike and lightning (Optional)
- Isolation transformer (Optional)
- Harmonic filter (Optional)
- RFI filter (Optional)
- Production with ISO 9001:2008 Quality Man¬agement System
- Spare part providing guarantee for 10 years
- Broad service network
| Voltage | 380 V AC Three Phase + Neutral (400 – 415 V AC Optional) |
| Voltage Tolerance | 275 V AC – 450 V AC (155 – 550 V AC Optional) |
| Frequency | 50 Hz. (60 Hz. Optional) +- 5% |
| Connection | Suitable Terminal |
| Voltage | 380 V AC Three Phase + Neutral (400 – 415 V AC Optional) |
| Voltage Tolerance | +- 2% (+-1 % (Optional) |
| Over Load | 101 % – 125% Load 3 Min. / 126% – 150% Load 10 Sec. / 151% – Load Output Off in 0,2 Sec. |
| Frequency | 50 Hz. (60 Hz. Optional) +- 5% |
| Regulation Speed | 500 V/sec |
| Efficiency | > 97% |
| Connection | Suitable Terminal 1000 Ква |
| LCD Display | With 2×16 character LCD Display: Input Voltage, Output Voltage, % Output Load, Output Frequency, Stabilizer Condition and Failure Info, Over Load, Over Temperature, Input Failure warning ext. |
| Communication | Through a software support and “Remote Management System”(RS-232 Communication port, Ethernet), the ability of monitoring and controlling |
| Output Voltage | When Output Voltage out of 340 V AC – 420 V AC tolerance values Output Off with contactor |
| Current Protection | 1-Fuse protection with MCB at Input or Output 2-Electronical Over Current Protection Via Microprocessors |
| By-pass | Manuel By-Pass for failure and Maintenance |
| Surge Arrester | Suitable Surge Arrester unit for lightning and high voltage (Optional) |
| RFI Filter | RFI Filter / Harmonic Filter can be used to eliminate |
| Harmonic Filter | Input High frequency noises and Harmonic current (Optional) |
| Isolation Transformer | Input and Output Isolation Transformer for special usage (Optional) |
| Operating Temperature | -10 °C ~ +40 °C (-15 °C ~ +55 °C Optional) |
| Altitude | < 3000 m |
| Humidity | 90% non condensed |
| Acoustic Noise | < 50 dB |
