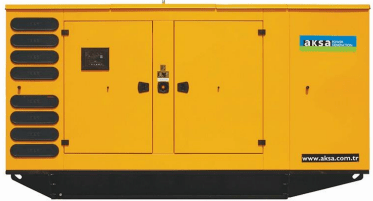

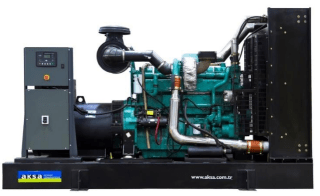

Дизельный генератор AD 825

Product: DOOSAN Alternator: AK 6600 Control System: DSE 7320

Дизельный генераторДизельный генератор

INTRODUCTION

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  TS ISO 8528
  TS ISO 9001-2008
  CE

General Characteristics

  SZUTEST
  2000/14/EC
Model NameAD 825
Frequency (Hz)50
Fuel TypeDiesel
Engine Made and ModelDOOSAN – DP222LC
Alternator Made and ModelAksa – AK 6600
Control Panel ModelDSE 7320
CanopyMS 85 TRP
VoltageSTANDBY RATING (ESP)PRIME RATING (PRP)Standby Amper
kVAkWkVAkW
400/231825660.00750600.001190.82
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

EngineDOOSAN
Engine ModelDP222LC
NO. OF CYLINDERS AND BUILD12 cylinders – V type
BORE AND STROKEmm128 X 142
TOTAL DISPLACEMENTL21.927
AspirationTurbo Charged and Intercooled (Air to Air)
COMPRESSION RATIO15.0:1
RATED SPEED (RPM)d/dk1500
OIL CAPACITYL40
Standby Power (kW/HP)723/983
Prime Power657/894
Block Heater QTY
1
Block Heater Power (Watt)3000
Fuel Type
Diesel
Injection Type and System
Direct
Type of Fuel Pump
Bosh In-Line P Type
Governor System
Electronic
Operating Voltage (Vdc)
24 Vdc
Battery and Capacity (Qty/Ah)2×143
Charge Alternator (A)
45
Cooling Method
Water Cooled
Cooling Fan Air Flow (m3/min)860
Coolant Capacity (engine only / with radiator) (lt)23/104.2
Air Filter
Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)161
Fuel Cons. Prime With %75 Load (lt/hr)119.1
Fuel Cons. Prime With %50 Load (lt/hr)79.3

ALTERNATOR SPECIFICATIONS

ManufacturerAksa
Alternator Made and ModelAK 6600
Frequency (Hz)Hz50
Power (kVA)kVA750
Design  Brushless
VoltageV400
Phase3
A.V.R.SX440
Voltage Regulation(+/-)1%
Insulation SystemH
ProtectionIP23
Rated Power Factor0.8
WEIGHT COMP. GENERATOR (Kg)1850
COOLING AIR (m³/min)m362.1

SIZE and WEIGHT

Open TypeDRY WEIGHT (kg.)

(kg.)

LENGTH

(mm.)

WIDTH

(mm.)

HEIGHT

(mm.)

TANK CAPACITY (lt.) (Lt.)
Дизельный генератор43203470155023021000
CANOPYDRY WEIGHT (kg.)

(kg.)

LENGTH

(mm.)

WIDTH

(mm.)

HEIGHT

(mm.)

TANK CAPACITY (lt.) (Lt.)
MS 85 TRP

Дизельный генератор

55355282160525041000

STANDARD SPECIFICATIONS

Water cooled, Diesel engine

Radiator with mechanical fan

Protective grille for rotating and hot parts

Electric starter and charge alternator

Starting battery (with lead acid) including rack and cables

Engine coolant heater

Base frame design incorporates an integral fuel tank and anti-vibration isolators

Flexible fuel connection hoses

Single bearing, class H alternator

Industrial exhaust silencer and steel bellows supplied separately(for open sets)

Static battery charger

Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

• Fuel-Water Seperator Filter

• Oil heater

ALTERNATOR

• Anti-Condensation Heater

• Over sized alternator

• PMG excitation + AVR

• Main line circuit breaker

CONTROL SYSTEM

• Automatic synchronising and power control system ( multi gen-set Parallel )

• Transition synchronization with mains

• Remote annunciator panel

• Remote relay output

• Alarm output relays

• Remote communication with modem

• Earth fault, single set

• Charge Ammeter

TRANSFER SWITCH

• Three Pole Contactor

• Four Pole Contactor

• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank

• Automatic or manual fuel filling system

• Manual oil drain pump

• Electrical oil drain pump

• Low and high fuel level alarm

• Residential silencer

• Enclosure: weater protective or sound attenuated

• Duct adapter ( on radiator)

• Inlet and outlet motorised louvers

• Inlet and outlet acoustic baffles

• Trailer

• Tool kit for maintenance

• Automatic transfer switch

Control System: DSE 7320
Дизельный генератор
1. Menu navigation buttons

2. Close mains button

3. Main Status and instrumentation display

4. Alarm LED’s

5. Close generator button

6. Status LED’s

7. Operation selecting buttons

Devices

DSE, model 7320 Auto Mains Failure control module Static battery charger Emergency stop push button and fuses for control circuits

CONSTRUCTION and FINISH

Comonents installed in sheet steel enclosure.

Phosphate chemical, pre-coating of steel provides corrosion resistant surface

Polyester composite powder topcoat forms high gloss and extremely durable finish

Lockable hinged panel door provides for easy component access

INSTALLATION

Control panel is mounted generating set baseframe on robust steel stand or power module. Located at side of generating set with properly panel visibility.

GENERATING SET CONTROL UNIT

The DSE 7320 conrol module is a standard addition to our generator sets from 220 kVA upwards and it has been designed to start and stop diesel andgas generating sets that include electronic and non electronic engines.

The DSE 7320 includes the additional capability of being able to monitor a mains (utility) supply and is therefore suitable for controlling a standby generating set in conjunction with an automatic transfer switch.

The DSE7320 also indicates operational status and fault conditions, automatically shutting down the generating set and indicating faults by means of its LCD display on the front panel.STANDARD SPECIFICATIONS

Microprocessor controlled

– 132 x 64 pixel LCD display makes information easy to read

– Front panel programming and also via PC software

– Soft touch membrane keypad and five key menu navigation

– Remote communications via RS232, RS485 and ethernet.

– Event logging (50) showing date and time

– Multiple date and time engine exercise mode and maintenance scheduler

– Engine block heater control.

– Controls; stop, manuel, auto, test, start, mute lamb test/transfer to generator, transfer to mains, menu navigation.

Instruments

ENGINE

Engine speed

Oil pressure

Coolant temperature

Run time Battery volts

Engine maintenance dueGENERATOR

Voltage (L-L, L-N)

Current (L1-L2-L3)

Frequency

Earth current

kW

Pf

kVAr

kWh, kVAh, kVArh

Phase sequenceMAINS

Voltage (L-L, L-N)

Frequency

Protection Circuits

WARNING

Charge failure

Battery under voltage

Fail to stop

Low fuel level (opt.)

kW over load

Negative phase sequence

Loss of speed signalPRE-ALARMS

Low oil pressure

High engine temperature

Low engine temperature

Over /Under speed

Under/over generator frequency

Under/over generator voltage

ECU warningSHUT DOWNS

Fail to start

Emergency stop

Low oil pressure

High engine temperature

Low coolant level

Over /Under speed

Under/over generator frequency

Under/over generator voltage

Oil pressure sensor open

Phase rotationELECTRICAL TRIP

Earth fault

kW over load

Generator over current

Negative phase sequence

Options

High oil temperature shut down

Low fuel level shut down

Low fuel level alarm

High fuel level alarmEXPANSION MODULES

Editional LED module (2548)

Expension relay module (2157)

Expansion input module (2130)

Standards

Elecrical Safety / EMC compatibilityBS EN 60950 Electrical business equipment

BS EN 61000-6-2 EMC immunity standard

BS EN 61000-6-4 EMC emission standard

STATIC BATTERY CHARGER

Battery charger is manufactured with switching-mode and SMD technology and it has high efficincy.

Battery charger models’ output V-I characteristic is very close to square

2405 has fully output shot circuit protection and ıt can be used as a current source.

2405 charger has high efficiency, long life, low failure rate, light weight and low heat radiated in accordance with linear alternatives.

The charger is fitted with a protection diode across the output.

Charge fail output is available.

Connect charge fail relay coil between positive output and CF output.

Input: 196-264V.

Output: 27,6V 5A or 13,8V 5A.

Canopy: MS 85 TRP

Дизельный генератор

1. Steel structures.

2. Emergency stop push button.

3. Control panel is mounted on the baseframe . Located at the right side of the generator set.

4. Corrosion-resistant locks and hinges.

5. Oil could be drained via valve and a hose

6. Exhaust system in the canopy.

7. Special large access doors for easy maintanance

8. In front and back side special large access doors for easy maintanance

9. Base frame -fuel tank.

10. Lifting points similar to ISO container , located on each top corner of the canopy.

11. The cap on the canopy provides easy accsess to radiator cap.

12. Sound proofing materials

13. Plastic air intake pockets.

INTRODUCTION

Sound-attenuated and weather protective enclosures for generating sets from Aksa, meet event the sound requirements and provide optimum protection from inclement weather and development by our specialist acoustic engineers. Our modular designed sound insulated canopies provide ease of access for servicing and general maintenance and interchangeable components permitting on-site repair. Enclosures are designed to optimize genset cooling performance, providing you with confidence that genset ratings and ambient capability.

STANDARD SPECIFICATIONS

Compact footprint, low profile design.

Enclosure, generator set, exhaust system and fuel tank are pre-ssembled, pre-integrated and shipped as one package

Body made from steel components treated with polyester powder coating

Fire retardant foam insulation

Easy access to all service points

Exhaust system inside canopy

Large doors on each side

Control panel viewing window in a lockable access door

Emergency stop push button mounted on enclosure exterior

Cooling fan and battery charging alternator fully guarded

Fuel fill and battery can only be reached via lockable access doors.

Lifting points on the top of canopy and base frame

Customer options available to meet your applications needs.

Aksa makes its generating sets’ noise level tests in accordance with directive 2000/14/EC validation of the noise level test has been aproved by the notified body Szutest

CANOPY MODELMS 85 TRP
WIDTHmm.1605
LENGTHmm.5282
HEIGHTmm.2504
TANK CAPACITY (lt.)Lt.1000
